Definition

The ledger supports bi-temporality, which means that each transaction is associated with two timestamps:
  • Request time: The time at which the transaction was submitted to the ledger. It is usually the machine clock time.
  • Transaction time: The time at which the transaction is considered to have occurred.
The ledger records both timestamps for each transaction, and the transaction time is used to determine the state of the ledger at a given point in time. Let’s consider the following example to illustrate the difference between the two timestamps.

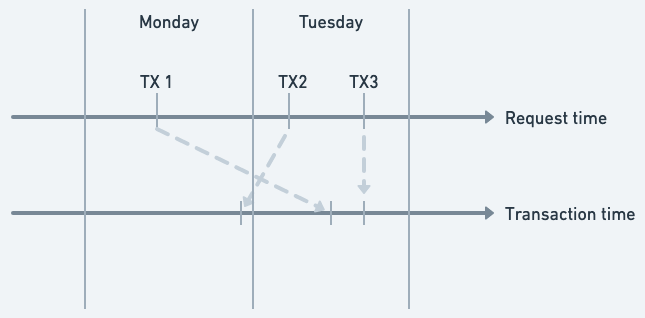

Bi-temporality
In this example, 3 transactions are submitted to the ledger at different times:
  • TX1 is submitted on monday, but the transaction time is set to tuesday. The transaction is considered to have occurred on tuesday. We say that the transaction is postdated.
  • TX2 is submitted on tuesday, and the transaction time is set to monday. The transaction is considered to have occurred on monday. We say that the transaction is backdated.
  • TX3 is submitted on tuesday, and the transaction time is set to tuesday. The transaction is considered to have occurred on tuesday. This is the default behavior.
Bi-temporality is useful in the following scenarios:
  • Time travel: The ability to query the ledger as it was at a specific point in time.
  • Correction of errors: The ability to correct errors in the ledger by backdating or postdating transactions.
  • Auditing: The ability to audit the ledger at a specific point in time.
  • Data import: The ability to import data from external systems that use different timestamps.

​
Present time relativity

Because transactions can either be backdated or postdated, the concept of “present time” may not match the current machine clock time. From the point of view of the ledger, the present time is the transaction timestamp the most in the future. In the example above, let’s consider that we only inserted TX1. In that case, the machine clock is on monday, but the present time is tuesday because the transaction time of TX1 is tuesday and it is the most recent transaction.

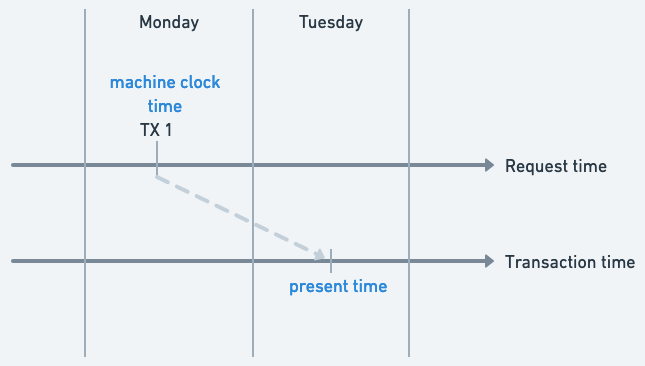

Present time
Likewise, if we insert only backdated transactions, the present time will be in the past compared to the machine clock.

​
Implications of bi-temporality

Bi-temporality allows users to insert transaction at any point in time in the past or future. When a user performs a query on the ledger, the ledger state is determined based on the requested point in time. The ledger state is a snapshot of the ledger at the requested point in time, and it includes all transactions that have a transaction time equal to or less than the requested point in time. This capability has some implications discussed below.
From now on, we will only consider the transaction time when discussing the ledger state at a specific point in time.

​
Account and Transaction Metadata

Account and transaction metadata are not fixed in time. When a user queries the ledger at a specific point in time, the metadata associated with accounts and transactions is also determined based on the requested point in time. This means that the metadata associated with an account or transaction can change over time.

​
Example: Fraud management

Let’s consider the following example. Suppose that a fraud engine is integrated with the ledger to flag suspicious account. It does so by adding risk=high to the account metadata. The fraud team regularly exports the suspicious accounts to an external system for further investigation. The fraud team queries the ledger at specific points in time to get the list of suspicious accounts. Let’s consider the account customer:123456. At a time t1 the fraud engine marks the account as suspicious by adding risk=high to the account metadata. The fraud team exports the list of suspicious accounts at time t2 and t3. The account will be included in the list of suspicious accounts in both exports.

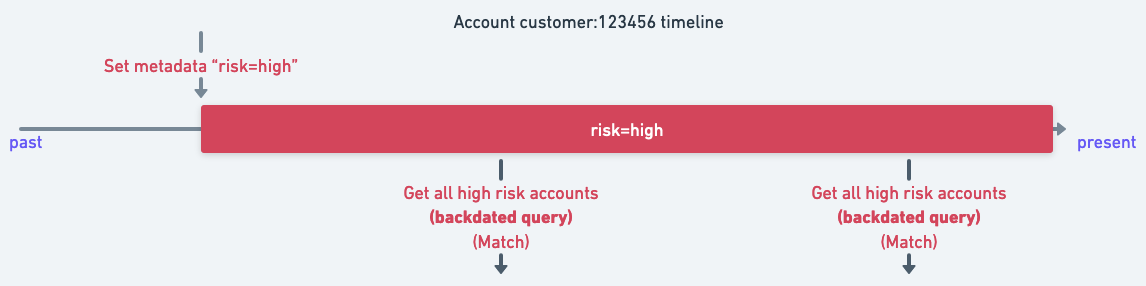

Initial state
Now, let’s consider that the fraud engine removes the risk=high metadata from the account at time t4 located between the two exports t2 and t3. It does so by removing the risk metadata using a backdated transaction. In this case, the account will not be included in the list of suspicious accounts in the export at time t3.

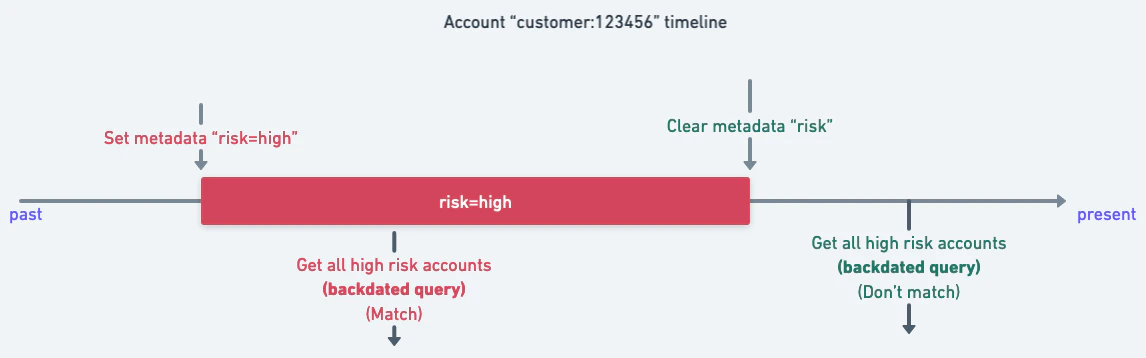

Final state

​
Backdated transaction validation

​
Problem Statement

When a user inserts a transaction with a transaction time in the past, there is a risk that the transaction is invalid because it might yield an invalid state of the ledger. Consider the following example account whose balance evolution is as follows:
TimeTransaction amountNew Balance
1100100
2-5050
3-1040
45090
5-1080
Now, consider that a user wants to insert a backdated transaction with a transaction time of 2 and an amount of -100. This transaction would yield the following balance evolution:
TimeTransaction amountNew Balance
1100100
2-1000
3-50-50
4-10-60
550-10
6-10-20
The new balance at time 6 is -20, which is invalid because the account has a negative balance. This is an example of an invalid backdated transaction. Now, consider that a user wants to insert a backdated transaction with a transaction time of 2 and an amount of -50, rather than -100. This transaction would yield the following balance evolution:
TimeTransaction amountNew Balance
1100100
2-5050
3-500
4-10-10
55040
6-1030
The new balance at time 6 is 30, which is valid because the account has a positive balance. This is an example of a valid backdated transaction.
Note that the intermediate balances might be negative, as it is the case at time 4 in the second example. The ledger does not validate the intermediate states of the ledger, only the final state.

​
Validation Mechanism

The ledger does not validate backdated transactions the same way it validates usual transactions. To check that a backdated transaction is valid, the ledger computes the new current state of the ledger by applying the backdated transaction and all the transactions that occurred after the backdated transaction. If the new state is valid, the backdated transaction is accepted. Otherwise, the backdated transaction is rejected. A backdated transaction is considered valid if it doesn’t put any account in a negative balance in the new computed final state of the ledger. Keep in mind that the ledger does not validate the intermediate states of the ledger, only the final state. The only exception to this rule is the accounts that have been allowed to overdraft within the transaction. These accounts can have a negative balance in the new computed final state of the ledger.

​
Setting transaction timestamps

When creating transactions, you can specify a custom timestamp to backdate or postdate the transaction.

​
Using the API

When sending a transaction via the API, include the timestamp field in the request body:
{
  "timestamp": "2024-09-07T00:00:00.000Z",
  "script": {
    "vars": {...},
    "plain": "send $my_amount ( source = $my_account allowing unbounded overdraft destination = @world )"
  }
}

​
Using fctl

For manual transactions or maintenance tasks, use the --timestamp flag with the fctl command:
fctl ledger transactions num -|<filename> --timestamp "2024-09-07T00:00:00.000Z"
The timestamp must be in RFC3339 format.
Currently, it’s not possible to set the transaction timestamp directly within a Numscript. While you can set transaction metadata using set_tx_meta(key, value), there’s no equivalent function for setting the timestamp in the script itself.

​
Reverting transactions

Transaction reverts are used to correct errors by reversing the effects of a previously committed transaction. To revert a transaction, use the revert endpoint:
POST /v2/{ledger}/transactions/{txId}/revert
The ledger creates a compensatory transaction with opposite postings to cancel out the original transaction’s effects.

​
The atEffectiveDate parameter

The atEffectiveDate parameter controls the transaction time of the compensatory transaction:
Without atEffectiveDate=true, the compensatory transaction is created at the current time, which produces incorrect balances in historical reports and financial statements.
For example, consider an account with transactions 1, 2, and 3. If you revert transaction 2 without atEffectiveDate, the compensatory transaction is created at the current time (after transaction 3). When generating reports that filter out reverted transactions, transaction 3 will show an incorrect balance of -9250 instead of -9750 because the revert isn’t accounted for at the right point in time. With atEffectiveDate=true, the compensatory transaction is created with the same transaction time as the original, maintaining accurate historical balances:
TxIdAmount InAmount OutBalance
1010000-10000
25000-9500
40500-10000
32500-9750
Always use atEffectiveDate=true when reverting transactions to maintain accurate historical balances.

​
Force reverting transactions

By default, the system prevents reverting transactions that would result in insufficient funds. However, you can override this validation using the force parameter. To revert a transaction involving an account with a negative balance:
POST /api/ledger/v2/{ledger}/transactions/{txId}/revert?force=true
Use the force parameter with caution:
  • It allows creating negative balances in accounts
  • Ensure proper controls and auditing are in place when using forced reversals
  • This feature is particularly useful for accounts that act as “always negative” balance accounts (like liability accounts)

​
Querying transactions with reverts

When querying transactions, you may want to exclude both reverted transactions and their compensatory transactions. Use this filter:
{
  "$and": [
    { "$match": { "account": "deals:XYZ:balances:" } },
    { "$match": { "reverted": false } },
    { "$not": { "$exists": { "metadata": "com.formance.spec/state/reverts" } } }
  ]
}
This query:
  • Matches transactions for a specific account
  • Excludes transactions marked as reverted
  • Excludes compensatory transactions (identified by the com.formance.spec/state/reverts metadata)
For performance, consider using the /volumes endpoint instead of /transactions when you only need balance information. The volumes endpoint supports pit (point in time), startTime, endTime, and groupBy parameters.

​
Effective Volumes

In Ledger v2, the concept of effective volumes was introduced to handle backdated transactions correctly.

​
What are effective volumes?

  • Regular volumes: Represent volumes as they are at the current time
  • Effective volumes: Represent volumes as they were at the date a transaction was inserted, not the date it was created
While regular volumes cannot change over time, effective volumes can change when looking into the past. If you insert a backdated transaction, the effective volumes of all subsequent transactions are recalculated.
Effective volumes are the only data that escapes the control of historization. Even by freezing the ledger at a date T, effective volumes can move because you can insert transactions before that date.

​
Enabling effective volumes

Effective volumes are enabled when the following features are configured:
FeatureValueDescription
MOVES_HISTORYONHistorize funds movements by account
MOVES_HISTORY_POST_COMMIT_EFFECTIVE_VOLUMESSYNCCompute and maintain post-commit effective volumes

​
Performance considerations

While MOVES_HISTORY_POST_COMMIT_EFFECTIVE_VOLUMES: SYNC guarantees data accuracy, it introduces performance overhead. When set to DISABLED, you lose pre/post commit effectiveVolumes but speed up backdated transaction updates. The effectiveVolumes field is still updated.
When inserting a backdated transaction with MOVES_HISTORY_POST_COMMIT_EFFECTIVE_VOLUMES enabled, the ledger performs these additional steps:
  1. Compute postCommitEffectiveVolumes for the moves by searching for previous moves for the account/asset pair
  2. Insert the new move
  3. Update postCommitEffectiveVolumes for all future moves
The more transactions are affected by a backdated insertion, the more updates need to be processed.

​
Volume Query Consistency

If you experience flaky tests or consistency issues when posting transactions and immediately querying volumes, this may be related to how Point In Time (PIT) calculations work.

​
Understanding the issue

In Ledger versions 2.0 and 2.1, when no explicit end time (PIT) is provided in volume queries, the system automatically calculates one based on the current wall clock time (time.Now()). This causes issues when:
  • Writing transactions with future timestamps
  • The query executes before those future transactions become “past” relative to the auto-calculated end time
  • Tests run quickly enough that timing becomes inconsistent

​
Solutions

Starting from version 2.2, the end time (PIT) is not automatically defined, eliminating this timing issue.

​
Specify an explicit end time

If using an older version, provide an explicit endTime in your volume queries:
endTime := startTime.Add(time.Minute)
volumeReq := operations.V2GetVolumesWithBalancesRequest{
    Ledger:      ledgerName,
    RequestBody: filter,
    StartTime:   &startTime,
    EndTime:     &endTime,
}

​
Adjust transaction timestamps

Use past timestamps instead of future ones in your tests, ensuring all transactions are in the past relative to the query time.

​
Data consistency guarantee

Formance Ledger provides immediate consistency for all write operations. The system relies on PostgreSQL’s ACID properties to ensure data is completely synchronized after writing.
You should never need to use time.Sleep or similar delays to wait for data consistency. If you’re experiencing issues, it’s likely related to PIT calculation, not data synchronization.
The ledger stores dates with microsecond precision (PostgreSQL’s maximum precision). To avoid potential flakiness in tests, consider rounding your dates to microsecond precision.
